Glycoside Hydrolase Family 189

From CAZypedia
Jump to navigation Jump to search
Approve icon-50px.png

This page has been approved by the Responsible Curator as essentially complete. CAZypedia is a living document, so further improvement of this page is still possible. If you would like to suggest an addition or correction, please contact the page's Responsible Curator directly by e-mail.


Glycoside Hydrolase Family GH189
Clan GH-x
Mechanism Retaining
Active site residues Known
CAZy DB link
http://www.cazy.org/GH189.html

Substrate specificities

The cyclization domain alone of cyclic β-1,2-glucan synthase from Thermoanaerobacter italicus (TiCGSCy) was identified, characterized and structurally analyzed as reported in 2024 [1]. This enzyme established the novel glycoside hydrolase family (GH) 189. This enzyme specifically catalyzes transglycosylation reactions on linear β-1,2-glucans (LβGs) and β-1,2-glucooligosaccharides (Sopns, where 'n' represents the degree of polymerization (DP)) with DP 6 or more [1]. In the deglycosylation step, intermolecular transglycosylation results in release of disproportionated linear products, while intramolecular transglycosylation results in cyclization of the substrates to release cyclic β-1,2-glucans (CβGs) [1].

Kinetics and Mechanism

The reaction products of TiCGSCy were obtained using LβG as the substrate. The β-glucosidase-resistant compounds in the products were purified by size-exclusion chromatography. 1H-NMR analysis of these purified polysaccharides suggested that they are CβGs. In the chemical shift of 1H-NMR, no chemical shift derived from an anomeric proton in an α-anomer moiety was detected. This observation clearly demonstrates that TiCGSCy has a retaining mechanism [1].

Structural analysis (see #Three-dimensional Structure below) and mutational analysis suggest that E1442 of TiCGSCy acts on an anomeric carbon of a glucose moiety at subsite −1 as a nucleophile and E1356 of TiCGSCy acts on a scissile bond of a substrate via 3-hydroxy group of a glucose moiety at subsite +2 as an acid/base [1]. The reaction mechanism of TiCGSCy is noncanonical in that a substrate hydroxy group participates in the catalytic process (Fig.1)[1].

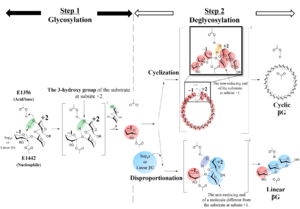

Fig.1 Catalytic mechanism of TiCGSCy.

Catalytic Residues

The acid/base residue and the nucleophile residue of TiCGSCy are E1356 and E1442, respectively. In addition, these residues are well superimposed with the general acid and the nucleophilic water in the GH162 fungal β-1,2-glucanase from Talaromyces funiculosus (TfSGL), respectively [1, 2]. TfSGL has an inverting mechanism particularly catalyzing a unique reaction via the 3-hydroxy group of the glucose molecule at subsite +2 [2].

As of Jan. 2024, the detailed reaction mechanisms of GH144 enzymes remain unclear [3]. However, SGLs belonging to both GH144 and GH162 have an inverting mechanism unlike GH189 [1, 2, 3]. A structural comparison revealed that the positions of the acid/base residue in GH189, the candidate catalytic residues in GH144 and the general acid residue in GH162 are well superimposed. On the other hand, the positions of the other catalytic residues (or candidate catalytic residues) in GH189, GH144 and GH162 are completely different (Fig.2).

Fig.2 Comparison of the catalytic residue positions of TiCGSCy (GH189), TfSGL (GH162, clan GH-S) and CpSGL (GH144, clan GH-S).

Three-dimensional structure

The apo-structure of the recombinant TiCGSCy was determined at 3.8 Å by X-ray crystal structure analysis (PDB: 8WY1) [1]. The overall structure comprises a single (α/α)6-barrel domain with several inserted α-helices and TiCGSCy has a large active-site pocket (Fig.3) [1].

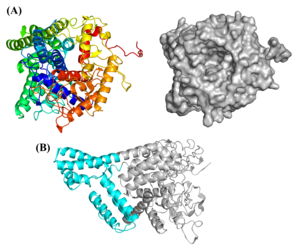

Fig.3 The overall structure of TiCGSCy.

Interestingly, although GH189 (= TiCGSCy), GH144 and GH162 enzymes are quite different in their amino acid sequences, their overall structures and the positions of the substrate in their catalytic pockets are similar [1].

GH144 and GH162 were officially classified as part of clan GH-S in this paper [1]. Although GH189 enzymes share a similar (α/α)6 fold structure with GH144 and GH162 enzymes, GH189 enzymes have a retaining mechanism unlike GH144 and GH162 enzymes with an inverting mechanism. Due to the fundamental difference in reaction mechanisms, GH189 is not included in clan GH-S; instead, GH189 could be regarded as a member of a potential new GH clan [1].

Family Firsts

First stereochemistry determination
1H-NMR analysis of β-glucosidase-resistant compounds, which produced by TiCGSCy using LβG as a substrate, as described above [1].
First catalytic nucleophile identification
The structural and mutational analysis of TiCGSCy [1].
First general acid/base residue identification
The structural and mutational analysis of TiCGSCy [1].
First three-dimensional structure
The apo-structure of the recombinant TiCGSCy was determined by X-ray crystal structure analysis [1].

References

  1. Tanaka N, Saito R, Kobayashi K, Nakai H, Kamo S, Kuramochi K, Taguchi H, Nakajima M, and Masaike T. (2024). Functional and structural analysis of a cyclization domain in a cyclic β-1,2-glucan synthase. Appl Microbiol Biotechnol. 2024;108(1):187. DOI:10.1007/s00253-024-13013-9 | PubMed ID:38300345 [Tanaka2024]
  2. Tanaka N, Nakajima M, Narukawa-Nara M, Matsunaga H, Kamisuki S, Aramasa H, Takahashi Y, Sugimoto N, Abe K, Terada T, Miyanaga A, Yamashita T, Sugawara F, Kamakura T, Komba S, Nakai H, and Taguchi H. (2019). Identification, characterization, and structural analyses of a fungal endo-β-1,2-glucanase reveal a new glycoside hydrolase family. J Biol Chem. 2019;294(19):7942-7965. DOI:10.1074/jbc.RA118.007087 | PubMed ID:30926603 [Tanaka2019]
  3. Abe K, Nakajima M, Yamashita T, Matsunaga H, Kamisuki S, Nihira T, Takahashi Y, Sugimoto N, Miyanaga A, Nakai H, Arakawa T, Fushinobu S, and Taguchi H. (2017). Biochemical and structural analyses of a bacterial endo-β-1,2-glucanase reveal a new glycoside hydrolase family. J Biol Chem. 2017;292(18):7487-7506. DOI:10.1074/jbc.M116.762724 | PubMed ID:28270506 [Abe2017]

All Medline abstracts: PubMed
